2.4V-12V NiMH NiCd Battery Pack Smart Charger
Features:
AC100-240V wide voltage input.
Ultra-low backflow current < 1uA, even if the battery is not connected to the power supply and connected to the charger for a long time, it will not cause the battery to be over-discharged and damage the battery.
2.4V-12V automatic identification, automatically adjust the best charging parameters.
The 0-voltage battery pack can be activated and charged.
Bad battery identification, for a battery that cannot be activated at all, it is judged as a bad battery.
Battery packs with protection diodes can be charged.
Short circuit protection, reverse polarity protection, maximum time.
Various ways to judge saturation: -ΔV, 0ΔV.
The charger is a dedicated smart charger for 2.4V-12V NiMH and NiCd battery packs.
The charger uses a 12-bit ADC high-precision single-chip microcomputer to control the output interface. The monitoring resolution can reach 5mV, which can accurately judge the battery status and automatically stop when fully charged.
Indicator light:
Red and blue lights flash once After the charger is connected to the (AC) power supply, the red and blue lights flash once, indicating that the charger is initialized.
A solid purple light indicates that the power supply (AC) is properly connected, and no battery is connected.
Steady red light Charging is in progress.
A solid blue light indicates that the battery is fully charged.
The red and blue lights flash alternately, indicating that the battery polarity is reversed.
Flashing red light indicates that the battery is damaged or the interface is shorted for more than 6 minutes.
Output plug: DC 5.5×2.1mm
Power cord: 1.5M
Can charge 2.4V-12V 200-3000mAH NiMH or NiCd battery pack.
Input voltage 85 - 265 V
Input current - - 0.2 A
Output voltage No load 18.5 19 19.8 V
Charge Current Auto Adjust 400 - 1100 mA
Maximum charging time 9.8H 10H 10.2H

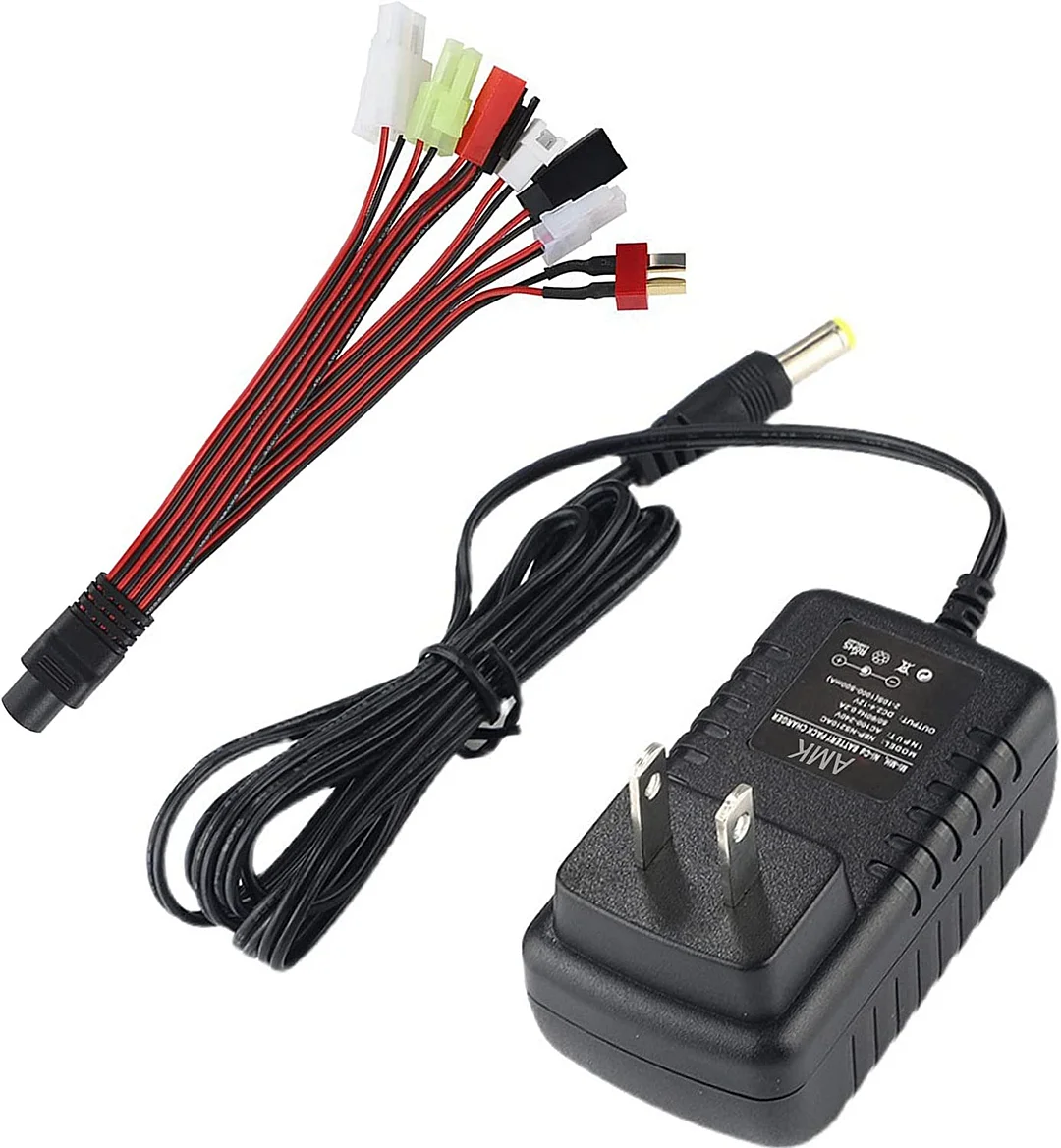

inbox:
1pcs 2.4V-12V RC Charger,
1pcs RC charging plug,
1pcs User Manual.
Note: The charger can only charge one battery pack at a time!
Note: Some battery packs are stored or not used for a long time, the battery voltage has dropped to a very low level, the charger will be fully charged quickly, and there is not much power during use. This is due to the battery, and the battery pack needs to be charged frequently. Keep at safe voltage!
