Suitable for TRX4 D90 DIY Upgrade
Hardened steel construction including injection molded nylon axle housing, internal spline drive shaft, metal suspension and steering links and metal frame rails allows it durable in use.
2-Speed High/Low Range Transmission achieve smoothness for best reliability and stronger power.
With adjustable Shock Towers.High driving efficiency, compact structure, convenient assembly.
Lower the center of gravity forward, make RC Crawler more stable.
2-Speed High/Low Range Transmission
High-torque 35T 550 motor
Injection Molded Nylon Axle Housing
Steel Internal Gears and Shaft
Metal Suspension and Steering Links
Internal Spline Drive Shaft
Adjustable Shock Towers
Metal Frame Rails
Easy to DIY and upgrade, ready for fun!

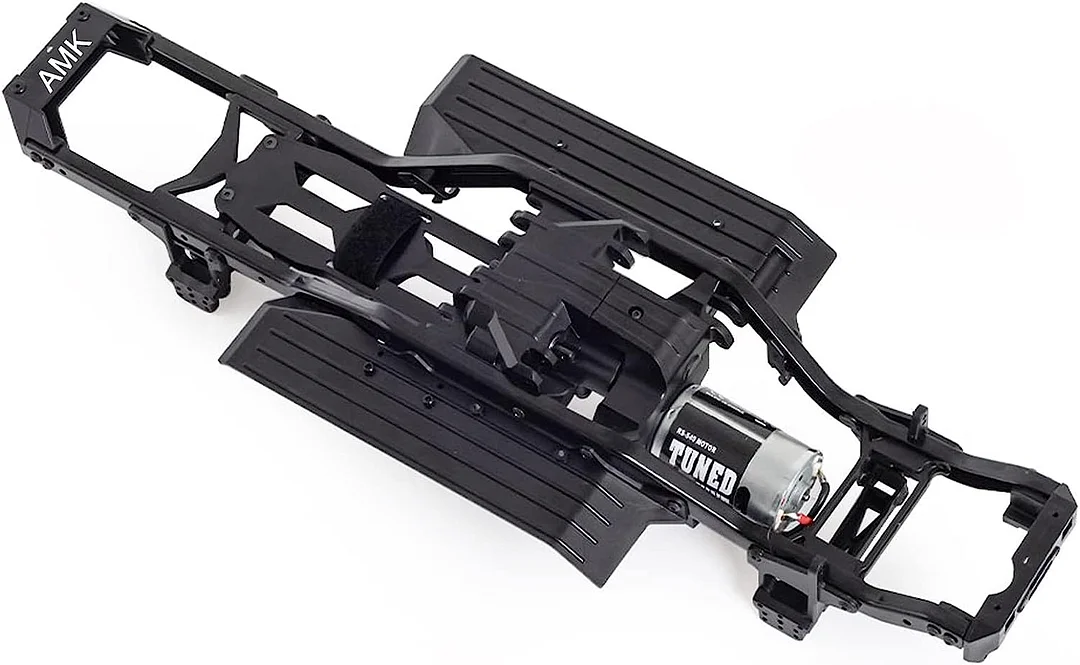

DIY Frame Specifications:
Quantity: 1 Set (without wheels, axles and links)
Weight: 895g
Length: 478mm
Width: 75mm
Chassis Specifications:
Material: Reinforced Nylon, Metal
Quantity: 1 Set
Wheelbase: 313mm
Length: 478mm
Width: 240mm
1.9 Tires Size: 121*45mm
Weight:
DIY Frame: 895g
Chassis without wheels: 1450g
Chassis with wheels: 1850g
Required to Complete(not included):
Body(313mm wheelbase )
Transmitter & Receiver (3 Channel or more)
ESC, Electronic Speed Controller
Standard Size Servos
Battery (Consult your "ESC" manual, Recommend 2S LiPo)
Charger (Consult your battery guide)
