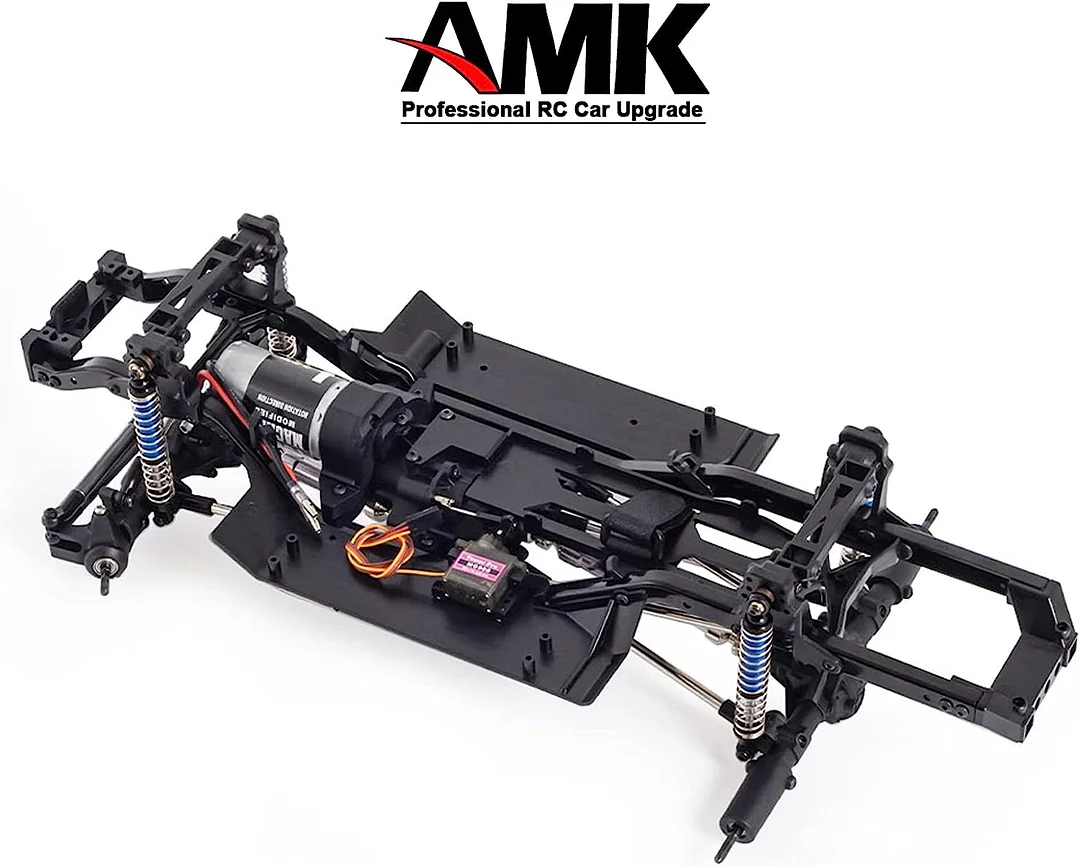

RC Frame 313mm Wheelbase Metal Chassis Frame with Prefixal 2-Speed Transmission for 1/10 RC Crawler Car Axial SCX10 90046. Suitable for 1/10 RC Crawler Axial SCX10 II 90046 EX86100
The metal chassis frame for 1/10 rc crawler is made of high-quality metal and carbon fiber material, cnc paint process, high quality.
Hardened steel construction including injection molded nylon axle housing, internal spline drive shaft, metal chassis brace set and metal frame rails allows it durable in use.
With Adjustable Shock Towers, providing users a good using experience.
Directly compatible with 313mm wheelbase wrangler rubicon body for best reliability and stronger power.
Front Mounted 2-Speed Transmission
Reversed Front Axle(reduce "shaft-induced effect")
Injection Molded Nylon Axle Housing
Steel Internal Gears and Shaft
4-link Suspension(with panhard bar)
Internal Spline Drive Shaft
Adjustable Shock Towers
Metal Chassis Brace Set
Metal Frame Rails
Directly Compatible with 313mm Wheelbase Wrangler Rubicon Body
Size & Weight:
Wheelbase: 312mm
Total Length: 435mm
Total Width: 215mm(axle)
Frame Width: 76mm
Total Weight: about 1.3kg
Gears:
Bevel Gear Set: 30T / 8T
Motor Gear: 0.7M 15T
Transfer Case Gear Ratio: 1:1.2
Single Speed Transmission Gear Ratio: 1:8
2-Speed Transmission Gear Ratio: 1:8 (low)/1:4.8 (high)
Required to Complete(not included):
Body(313mm wheelbase wrangler rubicon body)
Wheels(1.9/2.2 Inch)
Motor (Recommend 27T or 35T)
ESC, Electronic Speed Controller
Transmitter & Receiver (3 Channel or more)
Standard Size Servos
Battery (Consult your "ESC" manual, Recommend 2S LiPo)
Charger (Consult your battery guide)
