【Aluminum Front Rear Axle 3pcs RC Bevel Gear Set】24T/27T/30 to 8T RC Bevel Gear for 1:10 RC Crawler Axial SCX10 II RGT 86100 Redcat GEN8 Element Enduro CC01.

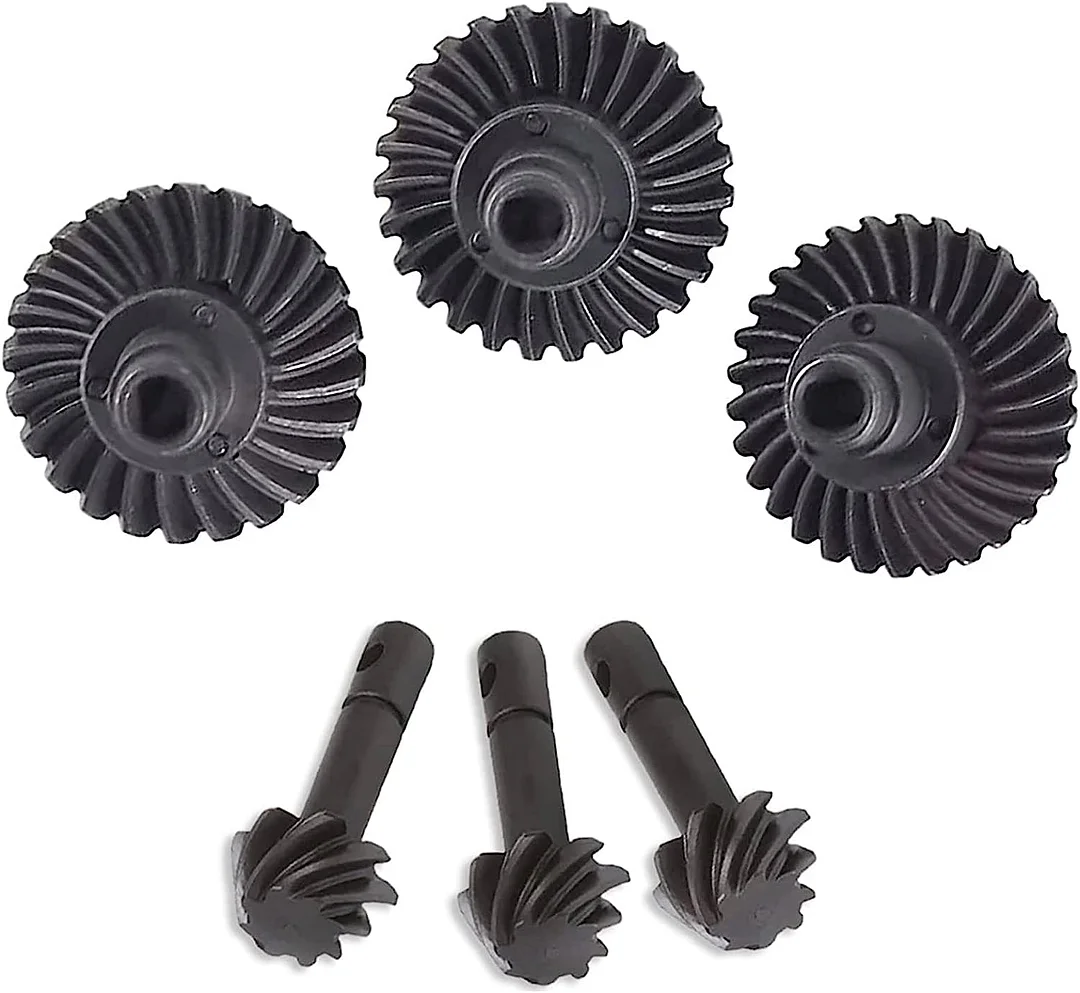

【SCX10 Bevel Gear】Steel Bevel Gear Suit for:Axial SCX10 II 90046 90047 1/10 RC Car and AR44/45 Capra Portal Axle Spare Parts, including 3pcs 8T bevel gear and 1pcs 24T / 1pcs 27T / 1pcs 30T bevel gear. tailor-made for DIY enthusiasts!
【Steel Bevel Gear use High Quality Matetial】Material: Made of high quality hard steel. It is a wonderful upgrade replacement for broken or ole one, and it also can help improve the comprehensive perfromance. easy to install and remove, ideal replacement for the old or broken one. Factory price with higher cost-effective.
【3set Bevel Gear】Steel Bevel Gear Set provides over drive for the front axle, helping to pull car climb easily. And it can guarantee to meet the original equipment. The upgrades RC front axle comes with 46 ° Large Steering, 8 ° inclination, Steel internal gears and driveshaft,gear ratio:8T/24T, 8T/27T, 8T/33T.
【100% Quality Guarantee Services】：inbox: 1pcs 24T/8T Bevel Gear Set, 1pcs 27T/8T Bevel Gear Set, 1pcs 30T/8T Bevel Gear Set. AMK offered 100% customers satisfaction warranty, please feel free to get in touch with us if you have any question on our products, our team willing to help you to solve the problems that you have meets.
Integrated CNC Aluminum Front Rear Axle
Optional Bevel Gear SOA Mount
Support 1/10 RC Crawler Rig Axial SCX10 II RGT 86100 Redcat GEN8 Element Enduro CC01
6061 Aluminum Housing
CNC Machined
Black/Clear/Gray Anodized
Housing Solid Reinforcement Design, Scale Appearance
Integrated C-Hub Design
Integrated Panhard Mount
Upper Link Mounts Built into Differential Cover
Increased Upper Link Clearance for More Suspension Up Travel Ability
Compatible with Factory Axial SCX10 II Links
Heavy Duty Hardened Steel Bevel Gear Set(30/8T)
Hardened Steel Universal Axle and Straight Axle
Up to 46 Degrees of Steering
Smooth Action for an Efficient Drivetrain
Stainless Steel Steering/Servo Link
Quality CNC Aluminum Rod Ends
Specifications:
Material: 6061 Aluminum
Color: Black/Silver/Gray
Total Length: 215mm
Pin to Pin: 180mm
Pumpkin Height: 36mm
Input Pinion Shaft: 5mm
Gear Ratio: 3.75 : 1
Kingpin Inclination: 8 Degrees
Kingpin Caster: 12 Degrees
Weight (Front Axle): 230g
Weight (Rear Axle): 150g
Optional Parts:
Overdrive Gear Set 24T/8T
Overdrive Gear Set 27T/8T
Underdrive Gear Set 33/8T
SOA (Servo on Axle) Mount (Coming Soon)
Important Notes:
1. Before you run the axles, make sure there is plenty of grease in the diff (enough to cover the gears)
2. Fasten all screws securely
3. The jack in the photo is for showing the axle only (Not Included)
4. This axle is not compatible with reverse bevel gears
