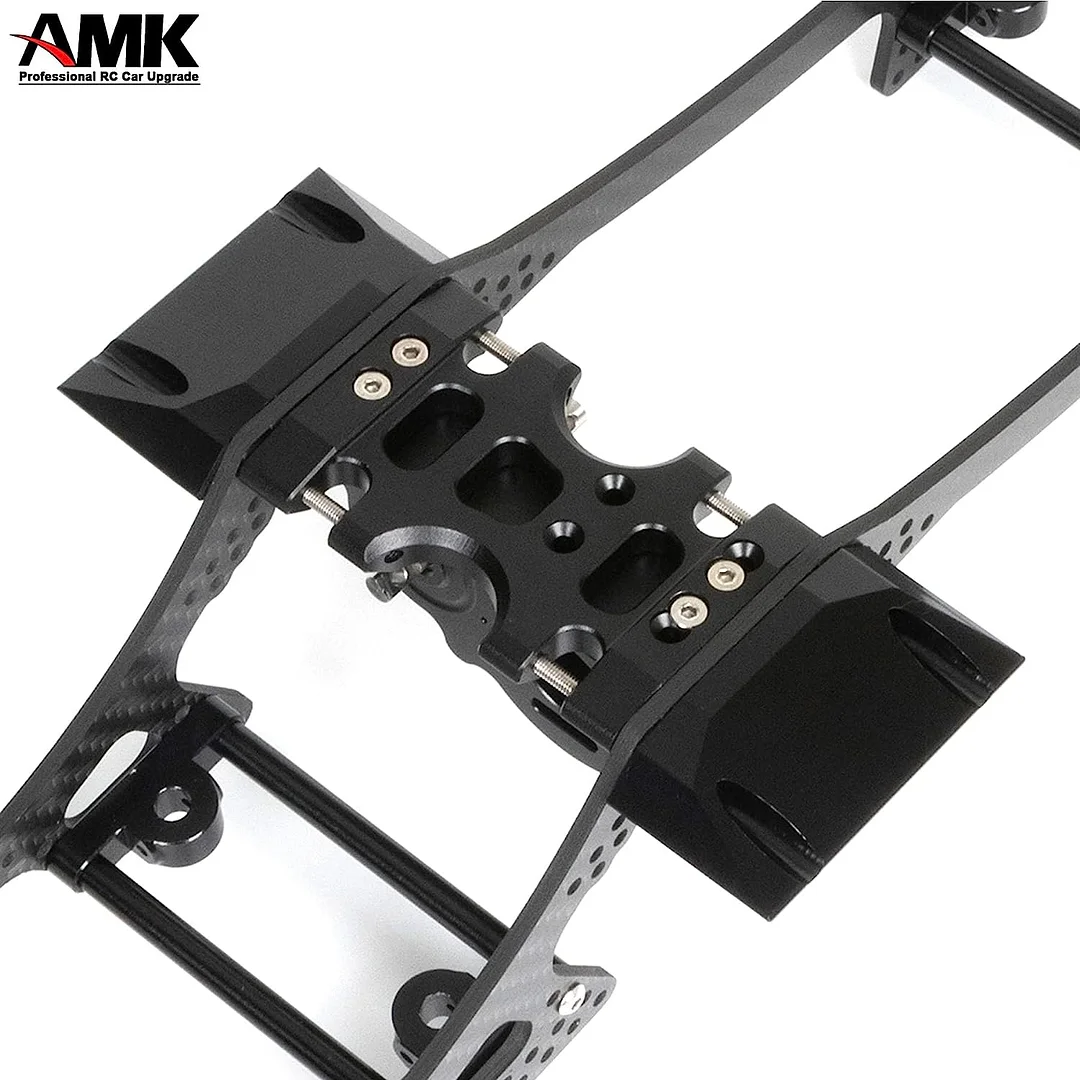

【RC Crawler 1/10】Professional 1/10 scale upgrade parts for RC trucks with 313mm wheelbase,such as Axial SCX10,TRX4,Capra,Wraith,Redcat Gen 7,etc
【Meterial】Metal frame with carbon fiber chassis rail give a LCG and make the frame robust and durable
【Lightweight】Lighter body results in increased speed and more agile steering
【High Freedom】Only a chassis,please yourself match other parts like motor,servo,etc.Make sure you know well how to choose other parts and design counterweights
【Note】A builders kit(not RTR),provided for Expert Players(not Beginner) with rich experience in RC modification
Warm Tips:
1.Gearbox internal gears need to be added with grease(not in package).
2.When the pinion mounted to the motor shaft,the set screw must be upward.
Specifications:
Material:Carbon Fiber/Aluminum Alloy
Length: 401mm/15.79in
Width: 78mm/3.07in
Rail Thickness: 3mm
Weight: 390g/13.76oz
Pinion
Gear: 9T
Gear Ratio: 9:1
Motor Shaft Diameter: 3.17mm
Discription:
#6061 Aluminum Alloy Gearbox, Anodized Black
With Pinion Mounted Adjustment Small Window
(Red/Black/Silver Copy Version from other stores, need to remove the entire cover)
Heavy Duty Machined Steel Gear Set
Steel Bearings
Package List:
1 Set 1/10 RC Builder Kit
