【RC Crawler 1/10】Professional 1/10 scale accessories for RC trucks
【Replicas】The overall framework,individual components,and all the details perfectly copy the original Cruiser
【Material】Premium alloy material frame and chassis,excellent workmanship
【Freedom】Only a chassis,please yourself match other parts like motor,servo,etc
【Note】A builders kit(not RTR) with manuals
Specifications:
Adjustable Wheelbase: 319mm(Max:343mm,Min:295mm)
Front Width: 74mm / 2.91"
Rear Width: 118mm / 4.65"
Axle Width: 171mm / 6.73" (Not Included Hex)
Total Length: 519mm / 20.43"
Weight: 2.7KG/5.95 lb
Material: Metal
Scale: 1/10
Function: Off-road
Drive: Electronic Drive(Fit 540 motor, recommend 21T)
Features:

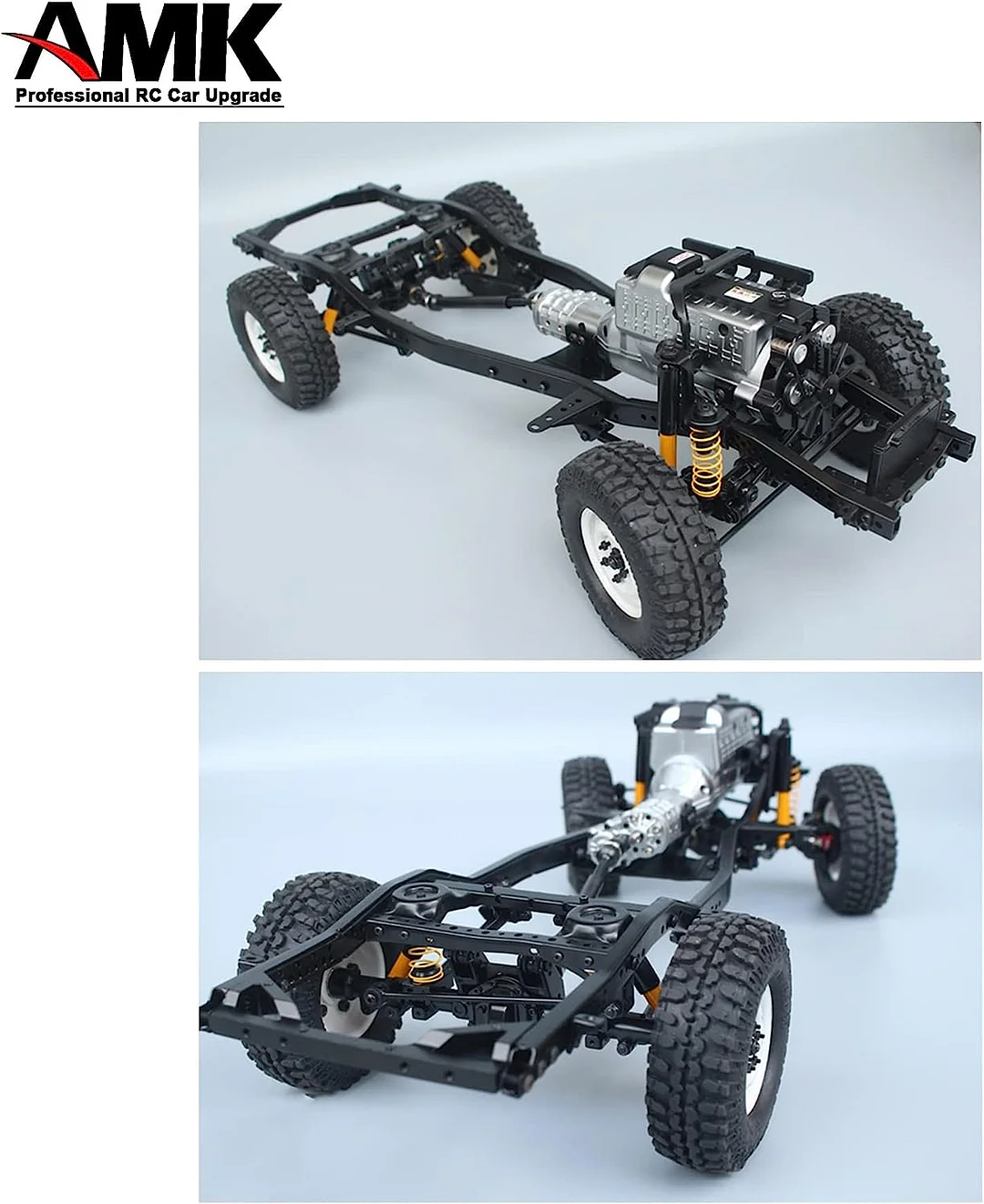

【FRAME RAIL CHASSIS】
Ultra scale looks, and superior quality and craftsmanship
Made of durable steel
Double C-channel structure and cross braces improve chassis rigidity (torsional stiffness)
More additional holes have been added to the frame rails for making wheelbase(Maximum 343mm,Minimum 295mm)
【TRANSMISSION】
Front-Mounted Moter (NOTE: motor not included)
Realistic, detailed transmission housing in a cast metal look
All metal internal gears
3 output shaft, Forward/Reverse, linear + inertial output
Realistic scale cooling fan(Equipped with mini motor and belt drive)
Adjustable installation
Gear ratio 1:24.8
【AXLES】
Die cast zinc alloy housing
Ackermann steering, Up to 45 degrees
Front / Rear panhard bar
Reverse transmission, smooth action for an efficient drivetrain
Hardened steel helical gear set
Compact yet durable design
Gear ratio 1:3.6
【SHOCKS】
Separate design, spring + shock damping
Compact yet durable design
Organ style cover, Highly detailed and super realistic
【DRIVE SHAFTS】
The front and rear drive shafts feature an updated design for added strength
Added carbon hardened steel material which reduces flex and fatigue
A hexagon splined slideroffers super travel length and super smooth operation
【SUSPENSION】
The link rod is made out of heat-treated carbon steel to withstand extreme conditions and the black rubber boot protects the link rod from the elements for even more durability while adding to the scale look
Required to Complete (not included):
Wheels
Tires
Body
Motor (Recommend 540 21T motor )
Electronic Speed Controller "ESC"
Radio and Receiver (3 Channels or more)
Servo
Battery (Consult your "ESC" manual)
Charger (Consult your battery guide)
